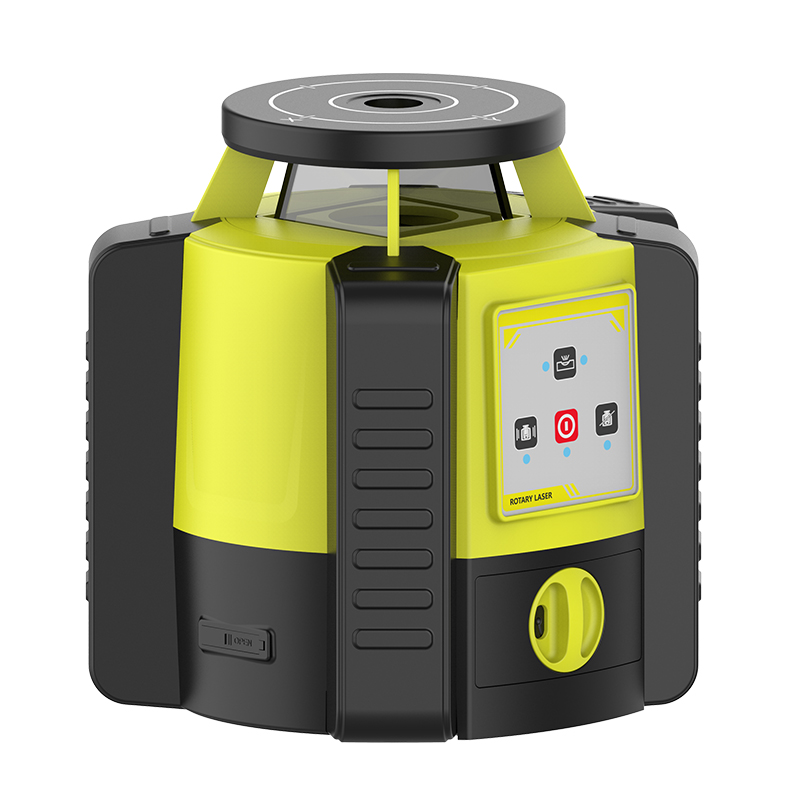

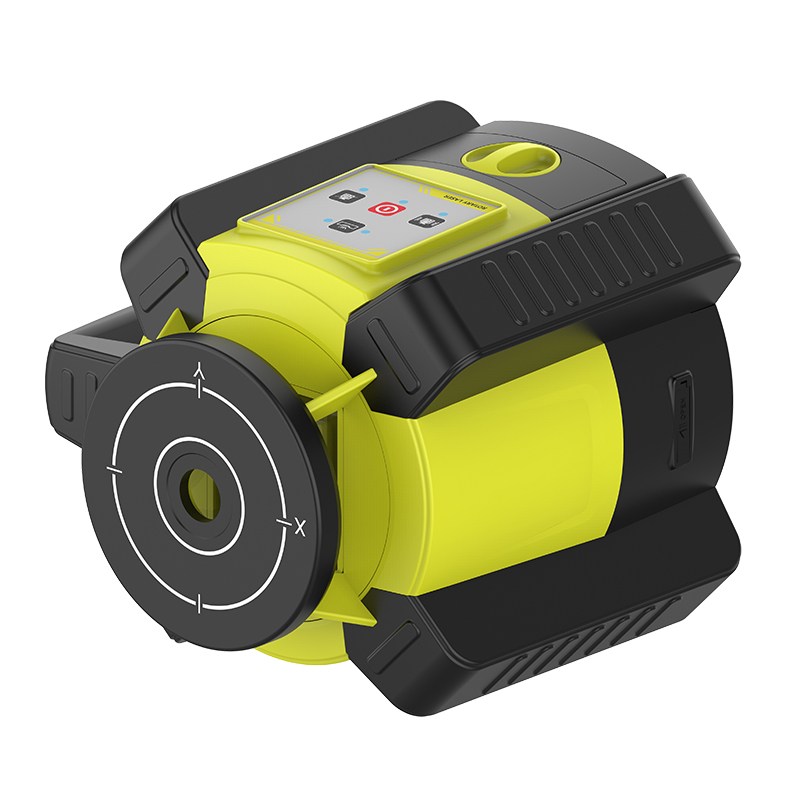

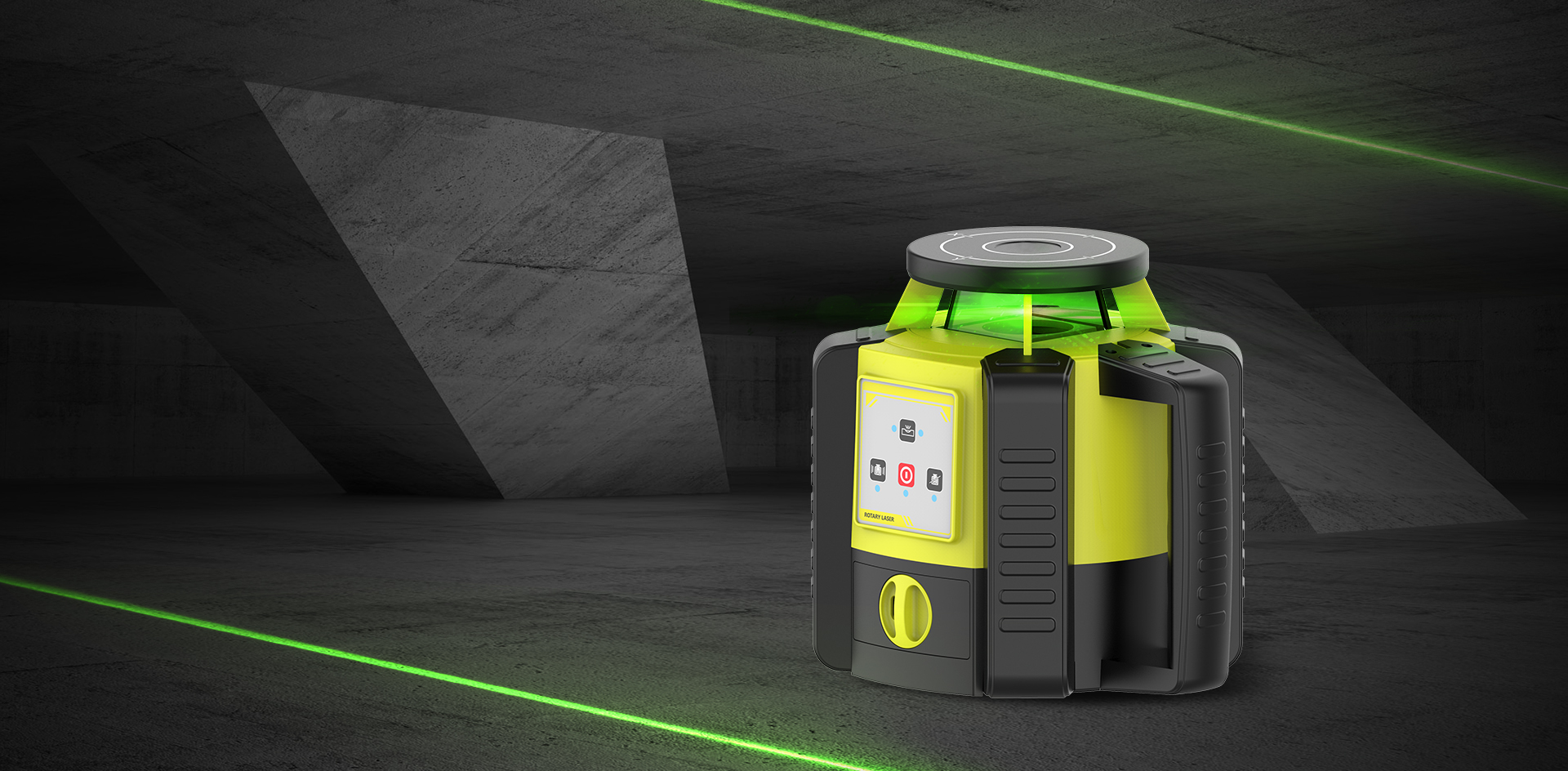

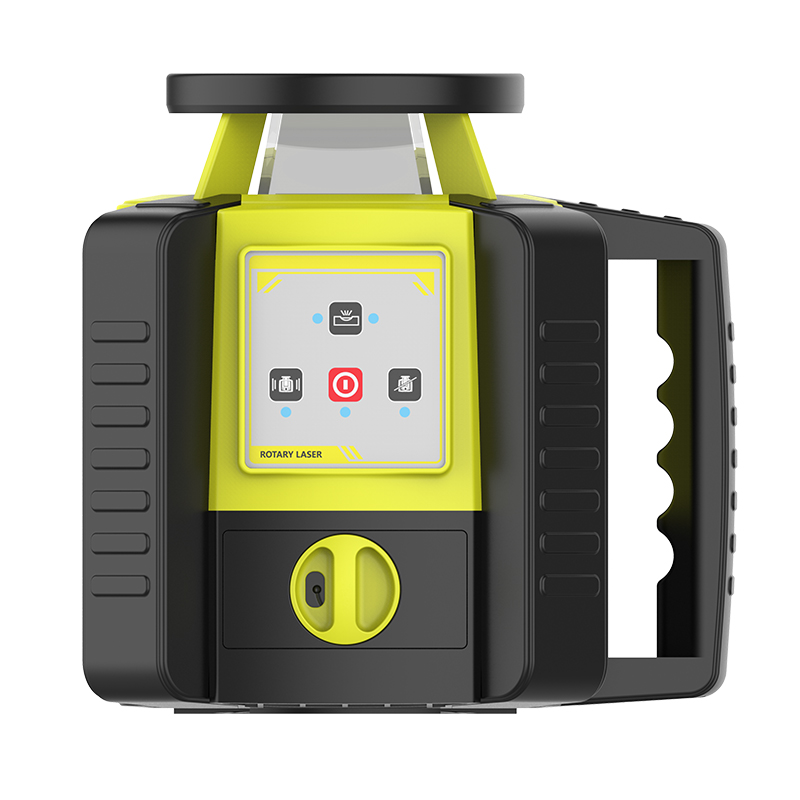

KRL-405 Rotary Laser – Precision Multi-Functional Measuring Instrument

The KRL-405 Rotary Laser is a high-performance multi-functional rotary laser designed for construction, surveying, and industrial applications. With both rotary laser green beam and rotary laser red beam options, this versatile tool ensures optimal visibility in various lighting conditions, making it ideal for indoor and outdoor use.

As a multi-functional rotary laser, the KRL-405 offers automatic self-leveling, manual slope mode, and a 360° rotating beam for full jobsite coverage. The rotary laser green beam (520nm) provides up to 4x better visibility than traditional red beams, perfect for bright environments, while the rotary laser red beam (635nm) remains a reliable choice for standard applications. With a working range of up to 800m (with detector) and ±1.5mm accuracy at 30m, this laser ensures professional-grade precision.

KRL-405 multi-functional rotary laser include:

Switch between rotary laser green beam and rotary laser red beam as needed
Dustproof and water-resistant for tough job sites
Enhances efficiency in large-scale projects

Whether you need high-visibility alignment or long-range leveling, the KRL-405 multi-functional rotary laser delivers unmatched performance.

Model parameter comparison of different rotary laser instruments

Item Number	Beam	Horitonal	Vertical	Top point	Bottom point	Handle	Bubble
KRL-405R	Red Beam	✔				Single handle	1 independent bubble + 1 round bubble
KRL-405G	Green Beam	✔				Single handle	1 independent bubble + 1 round bubble
KRL-410R	Red Beam	✔	✔	✔		Single handle	1 independent bubble + 1 round bubble
KRL-410G	Green Beam	✔	✔	✔		Single handle	1 independent bubble + 1 round bubble
KRL-420G	Green Beam	✔	✔	✔	✔	Double handle	1 independent bubble + 1 round bubble
KRL-420R	Red Beam	✔	✔	✔	✔	Double handle	1 independent bubble + 1 round bubble
KRL-440R	Red Beam	✔	✔	✔	✔	Four Handle	1 independent bubble + 1 round bubble
KRL-440G	Green Beam	✔	✔	✔	✔	Four Handle	1 independent bubble + 1 round bubble
KRL-540G	Green Beam	✔	✔	3 independent long blisters		Four Handle	3 independent long blisters
KRL-540R	Red Beam	✔	✔	3 independent long blisters		Four Handle	3 independent long blisters
KRL-640R	Red Beam	✔	✔	3 independent long blisters		Four Handle	3 independent long blisters
KRL-640G	Green Beam	✔	✔	3 independent long blisters		Four Handle	3 independent long blisters

Need a Solution?

K-level provides Consulting Services for surveying equipment. Contact Us for bulk orders or technical support!

1.High-Visibility Laser for Maximum Clarity

The KRL-405HVR model features a Rotary Laser green beam-red laser (635nm, 30mw), while the KRL-405HVG offers a brighter Rotary Laser red beam-green laser (515nm, 30mw), providing enhanced visibility in bright sunlight and over extended distances.

With a working diameter of up to 1000m (using LP500 receiver), this Rotary Laser is perfect for large-scale construction and outdoor applications.

2.Advanced Electronic Leveling for Ultimate Precision

KRL-405 Rotary Laser Equipped with 1 gyroscope + 1 dual-axis electronic sensor, the KRL-405 ensures fast and accurate self-leveling within ±5°, with an exceptional leveling accuracy of ±0.5mm/10m.

The Rotary Laser also supports manual slope adjustment (±10%), allowing for precise grading and sloped surface work via the included RC100 remote control.

3.Adjustable Rotation Speed & Scanning Modes

The permanent magnet brushless hollow motor enables variable rotation speeds (0/300/600/1000/1500 RPM), optimizing visibility and battery efficiency.

Multiple area scan modes (15°/45°/90°/180°) provide flexibility for different job requirements, from detailed interior work to wide-area outdoor leveling.

4.Long Battery Life & Rugged Durability

Powered by a replaceable lithium battery, the KRL-405 offers 15-20 hours of continuous operation, with optional extended batteries available for longer shifts.

Built to withstand harsh conditions, KRL-405 Rotary Laser boasts an IP65 protection rating and operates in temperatures ranging from -20℃ to +50℃, ensuring reliability in extreme environments.

KRL-405 Rotary Laser

5.Smart Remote Control & App Integration

The RC100 remote control (150m range) allows for seamless adjustments, while app-based calibration simplifies setup and maintenance.

KRL-405 multi-functional rotary laser Specifications

Laser type	KRL-405HVR	KRL-405HVG
Laser type/wavelength	Red laser (635nm-30mw)	Green laser (515nm-30mw)
Leveling way	Electronic leveling (1 gyroscope + 1dual axis electronic sensor)
Leveling range	±5°
Leveling accuracy	±0.5mm/10m
Working dia (UsingLP500)	≥1000m
Working dia (UsingLP700)	≥800m
Working temperature	-20℃～+50℃
Laser rotation speed	0/300/600/1000/1500rpm (Permanent magnet brushless hollow motor)
Area scan	15°/45°/90°/180°
Tilt setting	Two-way
Slope operation	Use the RC100 remote control
Main unit operation	4 keys /5 lights (Sync with remote control signal)
Remote control operation	12 keys /5 lights（Synchronize with host signals Remote control distance ≥150m)
Power supply method	Lithium (Single section replaceable) AC direct supply
Lithium working time	15-20H (Longer working time battery for option)
Calibration method	Remote control /APP
Packaging	Plastic box
Size	Length 232 Width 189 Height 227(mm)
Protection grade	IP65
Fall height	1M Main Machine only
Setting slop range	±10%
